FA107減速機重量：FA107減速機重量401公斤，F(xiàn)A107減速機與電機重量分別如下

FA107減速機與2.2KW電機重量433公斤，F(xiàn)A107減速機與3KW電機重量436公斤，F(xiàn)A107減速機與4KW電機重量447公斤，F(xiàn)A107減速機與5.5KW電機重量461公斤，F(xiàn)A107減速機與7.5KW電機重量474公斤，F(xiàn)A107減速機與11KW電機重量516公斤，F(xiàn)A107減速機與15KW電機重量536公斤，F(xiàn)A107減速機與18.5KW電機重量573公斤，F(xiàn)A107減速機與22KW電機重量586公斤，F(xiàn)A107減速機與30KW電機重量654公斤，F(xiàn)A107減速機與37KW電機重量701公斤，F(xiàn)A107減速機與45KW電機重量736公斤。分體減速機電機

FA107減速機加油量：可加齒輪油

FA107減速機M3方式安裝加19.5L，F(xiàn)A107減速機M2方式安裝加32L，F(xiàn)A107減速機M1方式安裝加25.5L，F(xiàn)A107減速機M4方式安裝加38.5L，F(xiàn)A107減速機M5方式安裝加27.5L，F(xiàn)A107減速機M6方式安裝加28L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時，您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

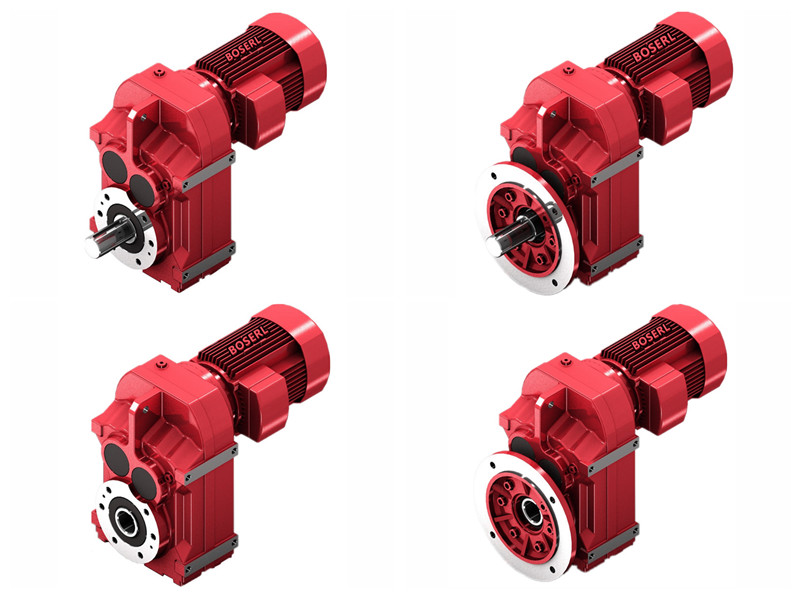

FA107減速機實物圖：圖一為FA107臥式孔輸出平行軸減速機，圖二F107底腳方式安裝軸輸出平行軸減速機，圖三為FF107立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF107立式法蘭孔輸出平行軸斜齒輪減速機。

FA107減速機型號表示方法：

FA107減速機型號結構FA107-B30KW-4P-減速比-方式安裝-接線盒位置。

FA107減速機性能參數表結構說明：HF手動釋放裝置與自鎖功能，F(xiàn)A107，F(xiàn)107，F(xiàn)F107，F(xiàn)AF107減速機機座號，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。齒輪減速機

FA107減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。可提供S和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

FA107減速機參數：

FA107減速機減速比1:254，1:215，1:199，1:178，1:161，1:146，1:129，1:117，1:101，1:92，1:88，1:83，1:74，1:67，1:58，1:50，1:43，1:37，1:31，1:33，1:27，1:25，1:21，1:19，1:16，1:14，1:12，1:10，1:9，1:8，1:7，1:6，1:5

FA107減速機輸出轉數5.5轉，6.5轉，7轉，7.8轉，8.7轉，9.6轉，11轉，12轉，14轉，15轉，16轉，17轉，19轉，21轉，24轉，28轉，33轉，37轉，44轉，41轉，51轉，56轉，64轉，73轉，84轉，95轉，114轉，141轉，144轉，167轉，189轉，225轉，278轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA107減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA107與2.2KW，F(xiàn)A107與3KW，F(xiàn)A107與4KW，F(xiàn)A107與5.5KW，F(xiàn)A107與7.5KW，F(xiàn)A107與11KW，F(xiàn)A107與15KW，F(xiàn)A107與18.5KW，F(xiàn)A107與22KW，F(xiàn)A107與30KW，F(xiàn)A107與37KW，F(xiàn)A107與45KW。

FA107減速機輸出扭矩7680N.m，7400N.m，7840N.m，7000N.m，6500N.m，4910N.m，4800N.m，4600N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FA107減速機安裝尺寸：高717*寬450*長484

FA107減速機型號：

FA107AQA80,FA107AQA100,FA107AQA115,FA107AQA140,FA107AQA160,FA107AQA190,FA107AQH80,FA107AQH100,FA107AQH115,FA107AQH140,FA107AQH160,FA107AQH190,JRTFA107-Y1.5KW,JRTFA107-Y100M4,JRTFA107-Y112M4,JRTFA107-Y11KW,JRTFA107-Y132M4,JRTFA107-Y15KW,JRTFA107-Y160M4,JRTFA107-Y18.5KW,JRTFA107-Y180M4,JRTFA107-Y2.2KW,JRTFA107-Y200M4,JRTFA107-Y225M4,JRTFA107-Y22KW,JRTFA107-Y30KW,JRTFA107-Y37KW,JRTFA107-Y3KW,JRTFA107-Y45KW,JRTFA107-Y4KW,JRTFA107-Y5.5KW,JRTFA107-Y7.5KW,JRTFA107-Y80M4,JRTFA107-Y90M4,JRTFA107-YEJ100M4,JRTFA107-YEJ112M4,JRTFA107-YEJ132M4,JRTFA107-YEJ160M4,JRTFA107-YEJ180M4,JRTFA107-YEJ200M4,JRTFA107-YEJ225M4,JRTFA107-YEJ80M4,JRTFA107-YEJ90M4,JRTFA107-YS100M4,JRTFA107-YS112M4,JRTFA107-YS132M4,JRTFA107-YS160M4,JRTFA107-YS180M4,JRTFA107-YS200M4,JRTFA107-YS225M4,JRTFA107-YS80M4,JRTFA107-YS90M4,JRTFA107-YVP100M4,JRTFA107-YVP112M4,JRTFA107-YVP132M4,JRTFA107-YVP160M4,JRTFA107-YVP180M4,JRTFA107-YVP200M4,JRTFA107-YVP225M4,JRTFA107-YVP80M4,JRTFA107-YVP90M4,JRTFA107-YVPEJ100M4,JRTFA107-YVPEJ112M4,JRTFA107-YVPEJ132M4,JRTFA107-YVPEJ160M4,JRTFA107-YVPEJ180M4,JRTFA107-YVPEJ200M4,JRTFA107-YVPEJ225M4,JRTFA107-YVPEJ80M4,JRTFA107-YVPEJ90M4,EWFA107-Y1.5KW,EWFA107-Y100M4,EWFA107-Y112M4,EWFA107-Y11KW,EWFA107-Y132M4,EWFA107-Y15KW,EWFA107-Y160M4,EWFA107-Y18.5KW,EWFA107-Y180M4,EWFA107-Y2.2KW,EWFA107-Y200M4,EWFA107-Y225M4,EWFA107-Y22KW,EWFA107-Y30KW,EWFA107-Y37KW,EWFA107-Y3KW,EWFA107-Y45KW,EWFA107-Y4KW,EWFA107-Y5.5KW,EWFA107-Y7.5KW,EWFA107-Y80M4,EWFA107-Y90M4,EWFA107-YEJ100M4,EWFA107-YEJ112M4,EWFA107-YEJ132M4,EWFA107-YEJ160M4,EWFA107-YEJ180M4,EWFA107-YEJ200M4,EWFA107-YEJ225M4,EWFA107-YEJ80M4,EWFA107-YEJ90M4,EWFA107-YS100M4,EWFA107-YS112M4,EWFA107-YS132M4,EWFA107-YS160M4,EWFA107-YS180M4,EWFA107-YS200M4,EWFA107-YS225M4,EWFA107-YS80M4,EWFA107-YS90M4,EWFA107-YVP100M4,EWFA107-YVP112M4,EWFA107-YVP132M4,EWFA107-YVP160M4,EWFA107-YVP180M4,EWFA107-YVP200M4,EWFA107-YVP225M4,EWFA107-YVP80M4,EWFA107-YVP90M4,EWFA107-YVPEJ100M4,EWFA107-YVPEJ112M4,EWFA107-YVPEJ132M4,EWFA107-YVPEJ160M4,EWFA107-YVPEJ180M4,EWFA107-YVPEJ200M4,EWFA107-YVPEJ225M4,EWFA107-YVPEJ80M4,EWFA107-YVPEJ90M4,SLFA107-Y1.5KW,SLFA107-Y100M4,SLFA107-Y112M4,SLFA107-Y11KW,SLFA107-Y132M4,SLFA107-Y15KW,SLFA107-Y160M4,SLFA107-Y18.5KW,SLFA107-Y180M4,SLFA107-Y2.2KW,SLFA107-Y200M4,SLFA107-Y225M4,SLFA107-Y22KW,SLFA107-Y30KW,SLFA107-Y37KW,SLFA107-Y3KW,SLFA107-Y45KW,SLFA107-Y4KW,SLFA107-Y5.5KW,SLFA107-Y7.5KW,SLFA107-Y80M4,SLFA107-Y90M4,SLFA107-YEJ100M4,SLFA107-YEJ112M4,SLFA107-YEJ132M4,SLFA107-YEJ160M4,SLFA107-YEJ180M4,SLFA107-YEJ200M4,SLFA107-YEJ225M4,SLFA107-YEJ80M4,SLFA107-YEJ90M4,SLFA107-YS100M4,SLFA107-YS112M4,SLFA107-YS132M4,SLFA107-YS160M4,SLFA107-YS180M4,SLFA107-YS200M4,SLFA107-YS225M4,SLFA107-YS80M4,SLFA107-YS90M4,SLFA107-YVP100M4,SLFA107-YVP112M4,SLFA107-YVP132M4,SLFA107-YVP160M4,SLFA107-YVP180M4,SLFA107-YVP200M4,SLFA107-YVP225M4,SLFA107-YVP80M4,SLFA107-YVP90M4,SLFA107-YVPEJ100M4,SLFA107-YVPEJ112M4,SLFA107-YVPEJ132M4,SLFA107-YVPEJ160M4,SLFA107-YVPEJ180M4,SLFA107-YVPEJ200M4,SLFA107-YVPEJ225M4,SLFA107-YVPEJ80M4,SLFA107-YVPEJ90M4,DSZFA107-Y1.5KW,DSZFA107-Y100M4,DSZFA107-Y112M4,DSZFA107-Y11KW,DSZFA107-Y132M4,DSZFA107-Y15KW,DSZFA107-Y160M4,DSZFA107-Y18.5KW,DSZFA107-Y180M4,DSZFA107-Y2.2KW,DSZFA107-Y200M4,DSZFA107-Y225M4,DSZFA107-Y22KW,DSZFA107-Y30KW,DSZFA107-Y37KW,DSZFA107-Y3KW,DSZFA107-Y45KW,DSZFA107-Y4KW,DSZFA107-Y5.5KW,DSZFA107-Y7.5KW,DSZFA107-Y80M4,DSZFA107-Y90M4,DSZFA107-YEJ100M4,DSZFA107-YEJ112M4,DSZFA107-YEJ132M4,DSZFA107-YEJ160M4,DSZFA107-YEJ180M4,DSZFA107-YEJ200M4,DSZFA107-YEJ225M4,DSZFA107-YEJ80M4,DSZFA107-YEJ90M4,DSZFA107-YS100M4,DSZFA107-YS112M4,DSZFA107-YS132M4,DSZFA107-YS160M4,DSZFA107-YS180M4,DSZFA107-YS200M4,DSZFA107-YS225M4,DSZFA107-YS80M4,DSZFA107-YS90M4,DSZFA107-YVP100M4,DSZFA107-YVP112M4,DSZFA107-YVP132M4,DSZFA107-YVP160M4,DSZFA107-YVP180M4,DSZFA107-YVP200M4,DSZFA107-YVP225M4,DSZFA107-YVP80M4,DSZFA107-YVP90M4,DSZFA107-YVPEJ100M4,DSZFA107-YVPEJ112M4,DSZFA107-YVPEJ132M4,DSZFA107-YVPEJ160M4,DSZFA107-YVPEJ180M4,DSZFA107-YVPEJ200M4,DSZFA107-YVPEJ225M4,DSZFA107-YVPEJ80M4,DSZFA107-YVPEJ90M4,BFA107-Y1.5KW,BFA107-Y100M4,BFA107-Y112M4,BFA107-Y11KW,BFA107-Y132M4,BFA107-Y15KW,BFA107-Y160M4,BFA107-Y18.5KW,BFA107-Y180M4,BFA107-Y2.2KW,BFA107-Y200M4,BFA107-Y225M4,BFA107-Y22KW,BFA107-Y30KW,BFA107-Y37KW,BFA107-Y3KW,BFA107-Y45KW,BFA107-Y4KW,BFA107-Y5.5KW,BFA107-Y7.5KW,BFA107-Y80M4,BFA107-Y90M4,BFA107-YEJ100M4,BFA107-YEJ112M4,BFA107-YEJ132M4,BFA107-YEJ160M4,BFA107-YEJ180M4,BFA107-YEJ200M4,BFA107-YEJ225M4,BFA107-YEJ80M4,BFA107-YEJ90M4,BFA107-YS100M4,BFA107-YS112M4,BFA107-YS132M4,BFA107-YS160M4,BFA107-YS180M4,BFA107-YS200M4,BFA107-YS225M4,BFA107-YS80M4,BFA107-YS90M4,BFA107-YVP100M4,BFA107-YVP112M4,BFA107-YVP132M4,BFA107-YVP160M4,BFA107-YVP180M4,BFA107-YVP200M4,BFA107-YVP225M4,BFA107-YVP80M4,BFA107-YVP90M4,BFA107-YVPEJ100M4,BFA107-YVPEJ112M4,BFA107-YVPEJ132M4,BFA107-YVPEJ160M4,BFA107-YVPEJ180M4,BFA107-YVPEJ200M4,BFA107-YVPEJ225M4,BFA107-YVPEJ80M4,BFA107-YVPEJ90M4,GFA107-Y1.5KW,GFA107-Y100M4,GFA107-Y112M4,GFA107-Y11KW,GFA107-Y132M4,GFA107-Y15KW,GFA107-Y160M4,GFA107-Y18.5KW,GFA107-Y180M4,GFA107-Y2.2KW,GFA107-Y200M4,GFA107-Y225M4,GFA107-Y22KW,GFA107-Y30KW,GFA107-Y37KW,GFA107-Y3KW,GFA107-Y45KW,GFA107-Y4KW,GFA107-Y5.5KW,GFA107-Y7.5KW,GFA107-Y80M4,GFA107-Y90M4,GFA107-YEJ100M4,GFA107-YEJ112M4,GFA107-YEJ132M4,GFA107-YEJ160M4,GFA107-YEJ180M4,GFA107-YEJ200M4,GFA107-YEJ225M4,GFA107-YEJ80M4,GFA107-YEJ90M4,GFA107-YS100M4,GFA107-YS112M4,GFA107-YS132M4,GFA107-YS160M4,GFA107-YS180M4,GFA107-YS200M4,GFA107-YS225M4,GFA107-YS80M4,GFA107-YS90M4,GFA107-YVP100M4,GFA107-YVP112M4,GFA107-YVP132M4,GFA107-YVP160M4,GFA107-YVP180M4,GFA107-YVP200M4,GFA107-YVP225M4,GFA107-YVP80M4,GFA107-YVP90M4,GFA107-YVPEJ100M4,GFA107-YVPEJ112M4,GFA107-YVPEJ132M4,GFA107-YVPEJ160M4,GFA107-YVPEJ180M4,GFA107-YVPEJ200M4,GFA107-YVPEJ225M4,GFA107-YVPEJ80M4,GFA107-YVPEJ90M4,FCA107-Y1.5KW,FCA107-Y100M4,FCA107-Y112M4,FCA107-Y11KW,FCA107-Y132M4,FCA107-Y15KW,FCA107-Y160M4,FCA107-Y18.5KW,FCA107-Y180M4,FCA107-Y2.2KW,FCA107-Y200M4,FCA107-Y225M4,FCA107-Y22KW,FCA107-Y30KW,FCA107-Y37KW,FCA107-Y3KW,FCA107-Y45KW,FCA107-Y4KW,FCA107-Y5.5KW,FCA107-Y7.5KW,FCA107-Y80M4,FCA107-Y90M4,FCA107-YEJ100M4,FCA107-YEJ112M4,FCA107-YEJ132M4,FCA107-YEJ160M4,FCA107-YEJ180M4,FCA107-YEJ200M4,FCA107-YEJ225M4,FCA107-YEJ80M4,FCA107-YEJ90M4,FCA107-YS100M4,FCA107-YS112M4,FCA107-YS132M4,FCA107-YS160M4,FCA107-YS180M4,FCA107-YS200M4,FCA107-YS225M4,FCA107-YS80M4,FCA107-YS90M4,FCA107-YVP100M4,FCA107-YVP112M4,FCA107-YVP132M4,FCA107-YVP160M4,FCA107-YVP180M4,FCA107-YVP200M4,FCA107-YVP225M4,FCA107-YVP80M4,FCA107-YVP90M4,FCA107-YVPEJ100M4,FCA107-YVPEJ112M4,FCA107-YVPEJ132M4,FCA107-YVPEJ160M4,FCA107-YVPEJ180M4,FCA107-YVPEJ200M4,FCA107-YVPEJ225M4,FCA107-YVPEJ80M4,FCA107-YVPEJ90M4,MTPA107-Y1.5KW,MTPA107-Y100M4,MTPA107-Y112M4,MTPA107-Y11KW,MTPA107-Y132M4,MTPA107-Y15KW,MTPA107-Y160M4,MTPA107-Y18.5KW,MTPA107-Y180M4,MTPA107-Y2.2KW,MTPA107-Y200M4,MTPA107-Y225M4,MTPA107-Y22KW,MTPA107-Y30KW,MTPA107-Y37KW,MTPA107-Y3KW,MTPA107-Y45KW,MTPA107-Y4KW,MTPA107-Y5.5KW,MTPA107-Y7.5KW,MTPA107-Y80M4,MTPA107-Y90M4,MTPA107-YEJ100M4,MTPA107-YEJ112M4,MTPA107-YEJ132M4,MTPA107-YEJ160M4,MTPA107-YEJ180M4,MTPA107-YEJ200M4,MTPA107-YEJ225M4,MTPA107-YEJ80M4,MTPA107-YEJ90M4,MTPA107-YS100M4,MTPA107-YS112M4,MTPA107-YS132M4,MTPA107-YS160M4,MTPA107-YS180M4,MTPA107-YS200M4,MTPA107-YS225M4,MTPA107-YS80M4,MTPA107-YS90M4,MTPA107-YVP100M4,MTPA107-YVP112M4,MTPA107-YVP132M4,MTPA107-YVP160M4,MTPA107-YVP180M4,MTPA107-YVP200M4,MTPA107-YVP225M4,MTPA107-YVP80M4,MTPA107-YVP90M4,MTPA107-YVPEJ100M4,MTPA107-YVPEJ112M4,MTPA107-YVPEJ132M4,MTPA107-YVPEJ160M4,MTPA107-YVPEJ180M4,MTPA107-YVPEJ200M4,MTPA107-YVPEJ225M4,MTPA107-YVPEJ80M4,MTPA107-YVPEJ90M4,WXFA107-WSS1.5KW,WXFA107-WSS100M4,WXFA107-WSS112M4,WXFA107-WSS11KW,WXFA107-WSS132M4,WXFA107-WSS15KW,WXFA107-WSS160M4,WXFA107-WSS18.5KW,WXFA107-WSS180M4,WXFA107-WSS2.2KW,WXFA107-WSS200M4,WXFA107-WSS225M4,WXFA107-WSS22KW,WXFA107-WSS30KW,WXFA107-WSS37KW,WXFA107-WSS3KW,WXFA107-WSS45KW,WXFA107-WSS4KW,WXFA107-WSS5.5KW,WXFA107-WSS7.5KW,WXFA107-WSS80M4,WXFA107-WSS90M4,WXFA107-WSSB100M4,WXFA107-WSSB112M4,WXFA107-WSSB132M4,WXFA107-WSSB160M4,WXFA107-WSSB180M4,WXFA107-WSSB200M4,WXFA107-WSSB225M4,WXFA107-WSSB80M4,WXFA107-WSSB90M4,WXFA107-WSSVP100M4,WXFA107-WSSVP112M4,WXFA107-WSSVP132M4,WXFA107-WSSVP160M4,WXFA107-WSSVP180M4,WXFA107-WSSVP200M4,WXFA107-WSSVP225M4,WXFA107-WSSVP80M4,WXFA107-WSSVP90M4,WXFA107-WSSVPB100M4,WXFA107-WSSVPB112M4,WXFA107-WSSVPB132M4,WXFA107-WSSVPB160M4,WXFA107-WSSVPB180M4,WXFA107-WSSVPB200M4,WXFA107-WSSVPB225M4,WXFA107-WSSVPB80M4,WXFA107-WSSVPB90M4。

FA107減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.wxwsd.com.cn/product/list-faxiliejiansuji-cn.html
